Aluminum alloys play a pivotal role in modern manufacturing, offering an ideal balance between strength, weight, and corrosion resistance. One of the most popular aluminum alloys for architectural and structural applications is 6063 aluminum, and when used in die casting, it brings a unique combination of advantages. 6063 die casting is widely utilized across various industries due to the alloy’s excellent surface finish, good corrosion resistance, and moderate mechanical properties. This article takes a deep dive into what makes 6063 suitable for die casting, its benefits, limitations, and the kinds of products commonly manufactured from it.
What Is 6063 Aluminum?
Before diving into the specifics of 6063 die casting, it’s important to understand what 6063 aluminum is. Classified under the 6000 series of aluminum alloys, 6063 is a magnesium-silicon alloy that is known for its superior extrudability, excellent finishing qualities, and good corrosion resistance. It is softer and more formable than some other aluminum alloys like 6061, which makes it particularly favorable for applications requiring intricate shapes and smooth finishes. Though often associated with extrusion, 6063 is also a viable option for die casting processes, especially where appearance and corrosion resistance are key.
The Die Casting Process with 6063 Aluminum
6063 die casting involves forcing molten aluminum into a steel mold, or die, under high pressure. Once the aluminum cools and solidifies, the mold is opened, and the cast part is removed. This process allows for the creation of complex, high-precision components with tight tolerances. Although 6063 is not as common in die casting as high-silicon alloys like A380, it is still used in low-pressure and gravity die casting applications where enhanced surface finish and moderate mechanical strength are desired.
Unlike pure extrusion, die casting allows for faster production of near-net-shape parts with minimal machining requirements. The ability of 6063 aluminum to achieve smooth surfaces and detailed geometries makes it a suitable candidate for products that require aesthetic appeal as well as functional performance. It is particularly effective in components that will be anodized or painted after casting, due to its excellent surface characteristics.
Advantages of 6063 Die Casting
The 6063 die casting process offers a number of unique advantages that make it appealing for manufacturers seeking a cost-effective and versatile solution. One of the most prominent benefits is the alloy’s outstanding surface finish. Parts cast from 6063 aluminum have a naturally smooth surface, which is ideal for decorative or visible parts. This makes the alloy an excellent choice for consumer electronics casings, automotive interior parts, and architectural hardware.
Additionally, 6063 offers good corrosion resistance, particularly when exposed to atmospheric conditions. This makes it an attractive material for outdoor applications, such as lighting fixtures, sign frames, and window components. Furthermore, it responds well to various surface treatments, including anodizing, powder coating, and painting, giving designers the flexibility to enhance both aesthetics and durability.
The moderate strength of 6063 aluminum also makes it easier to work with in post-casting operations. It machines well and can be drilled, tapped, or milled without excessive tool wear. Combined with its formability and light weight, 6063 is often chosen for designs that require a careful balance between performance and visual appeal.
Limitations and Considerations
While 6063 die casting has many benefits, it also comes with a few limitations that must be considered during the design and production process. One key factor is that 6063 does not offer the same high strength or wear resistance as some other aluminum alloys used in die casting, such as A356 or 7075. As a result, it may not be suitable for heavy-load-bearing or high-impact components.
Another challenge is its lower fluidity compared to other casting-specific aluminum alloys. This can sometimes make it more difficult to fill complex molds completely, especially in high-pressure die casting systems. However, with proper mold design and casting parameters, this issue can often be mitigated in low-pressure or gravity die casting setups.
Additionally, thermal conductivity and thermal expansion characteristics of 6063 should be taken into account, especially when designing for environments with fluctuating temperatures. The alloy may expand more than expected in high-heat applications, so tolerances need to be adjusted accordingly.
Applications of 6063 Die Casting in Industry
Thanks to its excellent finish and corrosion resistance, 6063 die casting is widely used in both consumer and industrial applications. In the construction and architectural sectors, 6063 is a common material for cast decorative trim, curtain wall connectors, and brackets. Its smooth finish allows for easy integration with visible structural elements, and its resistance to environmental degradation ensures long-term durability.
In electronics, die-cast 6063 aluminum is used for enclosures and heat sinks. While it may not conduct heat as well as some higher-silicon alloys, it still provides sufficient thermal dissipation for low-to-moderate power applications, all while maintaining a sleek, premium look.
The automotive sector also benefits from 6063 die casting, particularly for interior trim components, dashboards, and handle structures. These parts often need to be visually appealing and lightweight, yet strong enough to withstand regular use. The alloy’s ability to be anodized in various colors makes it a designer-friendly option as well.
In lighting, 6063 is often the go-to alloy for die-cast housings, brackets, and mounting arms. The combination of light weight, corrosion resistance, and ease of machining allows for versatile designs that can stand up to both indoor and outdoor conditions.
Comparing 6063 Die Casting with Other Aluminum Alloys
While 6063 die casting provides excellent surface finish and corrosion resistance, it’s important to consider how it compares to other die-casting-friendly alloys in terms of mechanical strength, thermal performance, and casting efficiency. One commonly used alloy in die casting is A380, which offers superior casting characteristics, including excellent fluidity, pressure tightness, and high mechanical strength. A380 is ideal for complex, high-volume castings with intricate designs, such as automotive housings, pump bodies, and engine components. However, the finish quality and corrosion resistance of A380 are typically lower than what 6063 aluminum offers, making 6063 a better option for decorative and outdoor applications.
6061 aluminum is another popular alloy that is sometimes used in casting applications, though it’s better known for its use in extrusion and machining. Compared to 6063, 6061 has higher tensile strength and better wear resistance. However, 6061 is harder to cast due to its lower fluidity and is generally not recommended for intricate die casting projects unless absolutely necessary.
What sets 6063 die casting apart is its combination of visual quality and corrosion resistance—especially when post-processing techniques like anodizing are planned. It also tends to be more cost-effective than high-performance alloys for applications that do not require maximum strength but do require aesthetic excellence and dimensional consistency.
Surface Finishing Options for 6063 Die Cast Parts
One of the key reasons manufacturers choose 6063 die casting is because of the alloy’s excellent compatibility with surface finishing processes. After casting, 6063 parts can be enhanced through a variety of finishing techniques to improve both function and appearance. The most common finish for 6063 aluminum is anodizing. This electrochemical process thickens the natural oxide layer on the aluminum surface, improving corrosion resistance and allowing for a decorative appearance. Anodized 6063 parts are commonly used in consumer products, architecture, and electronics, where a clean, metallic finish is desirable.
Powder coating is another popular finishing method used for die-cast aluminum. It provides a thicker, more durable coating than anodizing and can be applied in virtually any color. This makes it ideal for applications where aesthetics and impact resistance are both important, such as in automotive trim or outdoor lighting fixtures.
Other finishes include sandblasting, brushing, and polishing, depending on the design intent. Sandblasting gives a matte texture, brushing creates a linear grain, and polishing offers a mirror-like shine. Since 6063 aluminum is softer than other alloys, it responds well to these techniques and is often chosen for parts where surface quality is a major concern.
Design Considerations for 6063 Die Casting
Designing a component for 6063 die casting requires an understanding of both the alloy’s strengths and its limitations. Because 6063 does not flow as easily as some high-silicon casting alloys, it is better suited for less complex geometries or for processes like gravity die casting, which applies lower pressure and is more forgiving. Designers should ensure that wall thickness is kept uniform wherever possible to prevent shrinkage, warping, or incomplete mold filling. Ribs, gussets, and fillets should be used to add strength without significantly increasing weight or complexity.
Draft angles are also important in die casting. Since parts are ejected from the mold after solidification, a slight taper must be included on vertical surfaces to prevent sticking and to ensure smooth release from the die. For 6063 aluminum, recommended draft angles are usually in the range of 1° to 3°, depending on the size and complexity of the part.
Tolerances in 6063 die casting are another key factor. While the process can produce high-precision parts, very tight tolerances may still require secondary machining. Designers should avoid over-specifying tolerances where not necessary, as it can drive up production costs and complicate the casting process.
Thermal management should also be a consideration in certain applications, such as electronics or lighting, where the part may be exposed to heat during operation. While 6063 offers decent thermal conductivity, components must be designed to account for expansion and heat dissipation.
Sustainability and Environmental Impact
Another benefit of 6063 die casting is its alignment with sustainable manufacturing practices. Aluminum is one of the most recyclable metals on Earth, and the casting process for 6063 often incorporates a high percentage of recycled content without compromising quality. Recycled aluminum requires only around 5% of the energy used to produce primary aluminum, drastically reducing the environmental footprint of the final product.
In addition to energy savings, die casting itself is a highly efficient process. It produces minimal scrap, especially compared to subtractive manufacturing methods like machining. Any leftover material can be remelted and reused, making the process not only cost-effective but environmentally friendly.
Furthermore, the long service life of 6063 components—especially when treated with corrosion-resistant finishes—means that fewer replacements are needed over time, reducing waste. For manufacturers and end-users focused on sustainable product development, 6063 aluminum presents a strong case as both a performance material and an eco-conscious choice.
Common Products Made with 6063 Die Casting
The versatility of 6063 die casting makes it a staple across various sectors. In the architectural world, it is used for decorative panels, handles, brackets, and components that are visible and exposed to the elements. The alloy’s smooth finish and corrosion resistance make it ideal for door hardware, lighting fixtures, railings, and sign frames.

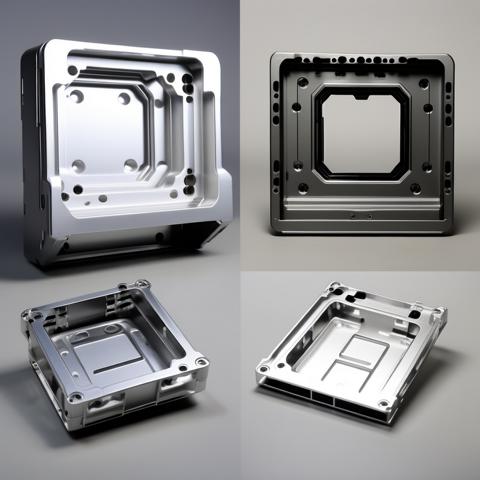

In electronics, 6063 is used for die-cast housings for enclosures and device casings. It provides a clean look and basic electromagnetic shielding, which is often sufficient for consumer-level devices. Thanks to its ability to be anodized in different colors, manufacturers can also match the aesthetic needs of modern tech products.
In automotive design, particularly interior and low-stress exterior components, 6063 die cast parts are often used in trim, dashboard brackets, mirror housings, and gear knobs. These components benefit from the alloy’s lightweight, finish quality, and ability to be easily shaped and finished to match the car’s design language.
6063 is also used in lighting—both for residential and commercial applications. Light fixtures, wall sconces, and track lighting components are frequently made from die-cast 6063 aluminum. These parts benefit from the alloy’s visual appeal, corrosion resistance, and ability to dissipate heat from LEDs and electrical components.
Final Thoughts
6063 die casting is a valuable process that leverages the unique characteristics of 6063 aluminum to produce high-quality, attractive, and corrosion-resistant components. While it may not offer the extreme strength or casting fluidity of other specialized alloys, it delivers a unique combination of aesthetic appeal, surface finish, and formability. These properties make it an excellent choice for products that prioritize visual quality, lightweight performance, and long-term durability.
Designers and engineers working on architectural hardware, automotive interiors, consumer electronics, or lighting components should seriously consider 6063 for die casting, especially when the end product must be attractive, functional, and cost-effective. With proper tooling, mold design, and finishing, manufacturers can produce components that meet demanding design specifications while remaining competitively priced.
Furthermore, its environmental benefits—through recyclability and energy efficiency—position 6063 die casting as a sustainable solution in a world that increasingly values green manufacturing. As industries evolve and product designs become more refined, the demand for alloys that balance form and function continues to grow. In this space, 6063 aluminum will remain a reliable and relevant choice for die casting applications.
